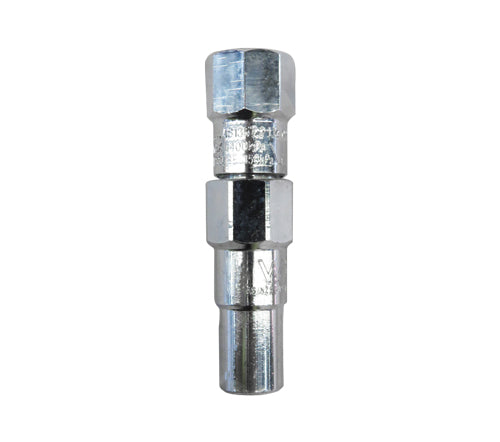

RMC 350kPa Pressure Limiting Valve with Dual Check – PVDC503

The RMC 350kPa Pressure Limiting Valve with Dual Check combines pressure limiting and backflow prevention in one compact unit. Designed for installation immediately upstream of domestic water filter units, it helps protect the filtration system from excessive supply pressure while preventing reverse water flow.

Independent pressure limiting and dual-check mechanisms operate within a durable dezincification-resistant brass body. Suitable for horizontal or vertical installation, the integrated design reduces the need for separate devices.

Key features:

• Combines pressure limiting and dual-check backflow prevention
• Factory-set outlet pressure of 350kPa
• Designed for domestic water filtration systems and other low-hazard applications
• Suitable for horizontal or vertical installation
• Durable dezincification-resistant brass body with high-quality polymer components
• Female inlet and outlet connections
• Individually tested for consistent performance

Specifications:

• Brand: RMC
• Product code: PVDC503
• Set outlet pressure: 350kPa at 1200kPa inlet pressure
• Maximum inlet pressure: 1200kPa
• Maximum water temperature: 40°C
• Flow rate: 6 L/min at 700kPa inlet pressure
• Inlet connection: 15mm G½ female
• Outlet connection: 8mm ¼-18 NPT female
• Overall length: 99mm
• Body material: DZR brass
• Internal components: DZR brass and acetal
• Check valve: Neoperl
• O-rings: EPDM/Nitrile
• Seals: HDPE
• Spring: Stainless steel

Installation:

Install immediately upstream of the water filter unit, following the flow direction marked on the valve. Installation must be carried out by a licensed plumber in accordance with the manufacturer’s instructions and applicable plumbing requirements.
