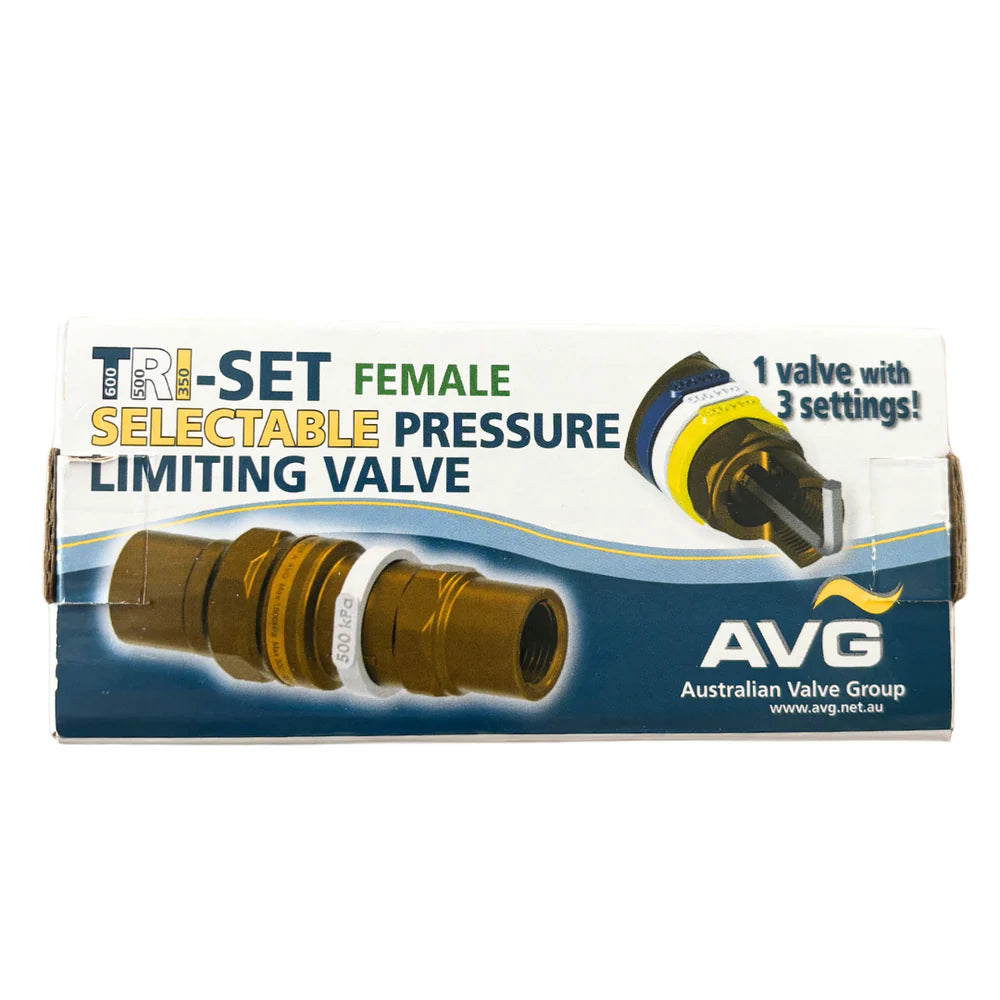

15mm Triset Pressure Limiting Valve 1/2" Female BSP AVG

The 15mm Triset Pressure Limiting Valve (1/2" Female BSP, AVG PLV15F) features a compact design with three selectable pressure settings: 350, 500, and 600 kPa. It can be installed in either a vertical or horizontal position, making it a flexible choice for a range of applications.

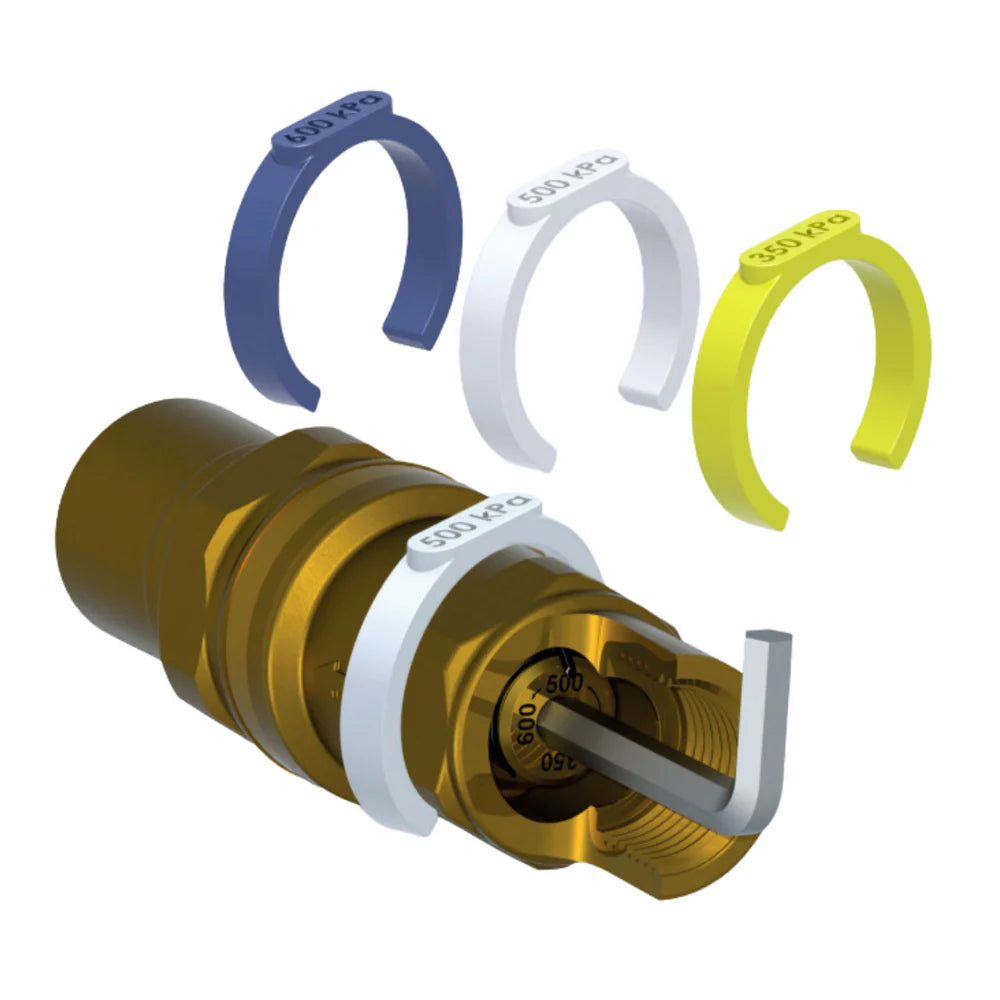

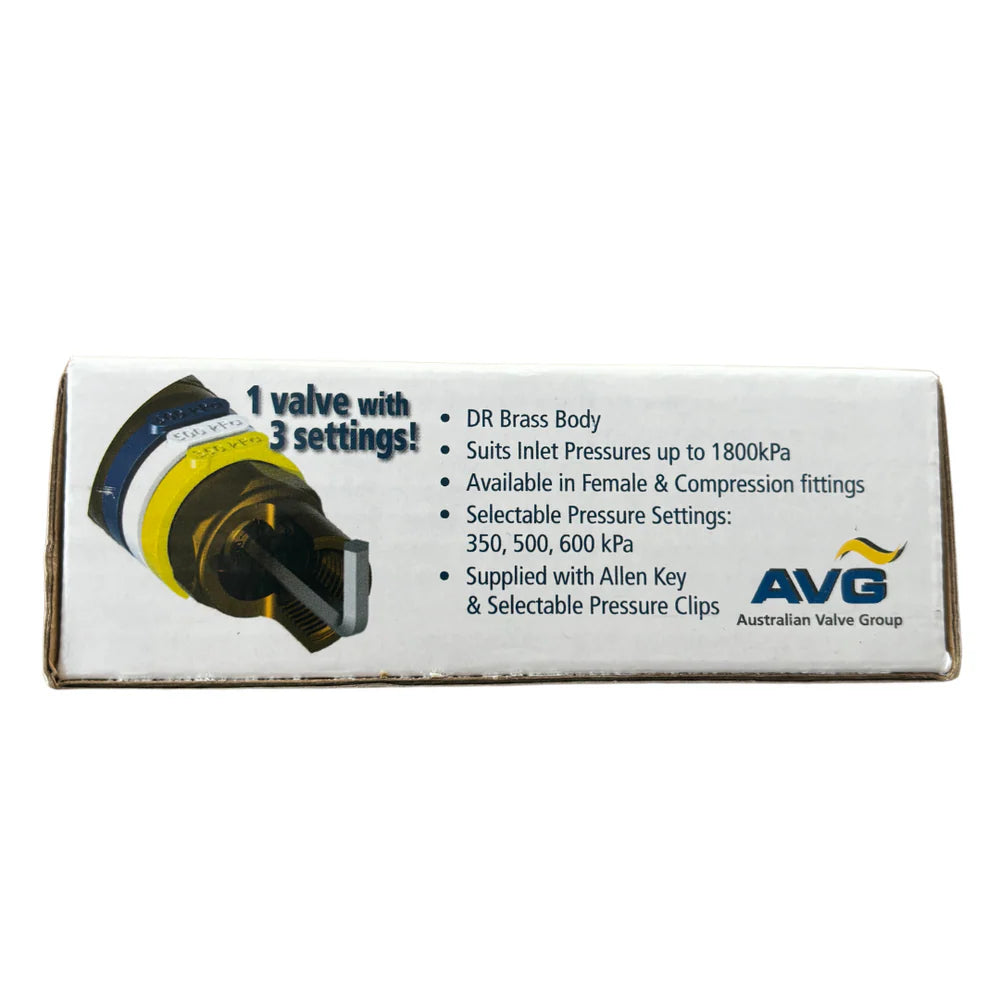

Constructed from durable dezincification-resistant (DR) brass, the valve is designed with optimised waterways to ensure efficient flow and reliable performance. Pressure adjustment is simple using the supplied Allen key—turn clockwise to increase to 600 kPa or anti-clockwise to reduce to 350 kPa. The set position can be easily confirmed by aligning the indicator mark with the values on the adjustment screw.

This valve is suitable for installation in enclosed areas such as cupboards and under sinks, thanks to its vented design. However, it should not be buried directly in the ground; if underground installation is required, it must be housed within an approved enclosure.

The valve has a preset maximum inlet pressure of 500 kPa and a maximum operating temperature of 80°C. It complies with AS 1357.2 standards and holds WATERMARK Licence No. 2639. Installation must be carried out by a licensed plumber in accordance with the manufacturer’s instructions.
